The maximum stress range is defined by the difference between maximum and minimum strength. FATcomp also defines the ratio between the maximum and the minimum stress range R, later used to compute the influence of mean stress and residual stress. Input the minimum and maximum stress, do not forget to use the minus before a compressive stress, picture 1:

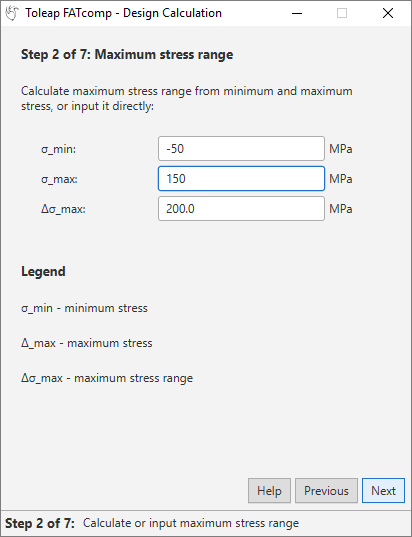

Picture 1: Joint Wizard opens in front of the main window.
When we click on next the input is completed.
The maximum stress range together with the load history and the number of load cycles are defining the fatigue load and have a great influence on the life of the component. The next step is the guide for the stress history parameter and number of cycles.
